GENERALITIES

External Dimensions

Length Width Height 20' Standard 6.058 m 2.438 m 2.591 m 20' 8' 8' 6'' 40' Standard 12.192 m 2.438 m 2.591 m 40' 8' 8' 6'' 40' High Cube 12.192 m 2.438 m 2.896 m 40' 8' 9' 6''

STANDARD CONTAINERS

20' STANDARD STEEL CONTAINER - 22 G1

INTERNAL DIMENSIONS DOOR L W H W H 5.898 m 2.352 m 2.393 m 2.340 m 2.280 m 19' 4 13⁄64 '' 7' 8 19⁄32 '' 7' 10 7⁄32 '' 7' 8 1⁄8 '' 7' 5 49⁄64 ''

CUBIC CAPACITY MAXIMUM PAYLOAD TARE WEIGHT MAXIMUM GROSS 33.20 m3 28,260 kgs 2,220 kgs 30,480 kgs 1,172.4 Cft 62,302 Lbs 4,894 Lbs 67,196 Lbs

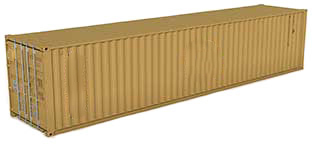

40' STANDARD STEEL CONTAINER - 42 G1

INTERNAL DIMENSIONS DOOR L W H W H 12.032 m 2.352 m 2.393 m 2.340 m 2.280 m 39' 5 45⁄64 '' 7' 8 19⁄32 '' 7' 10 7⁄32 '' 7' 8 1⁄8 '' 7' 5 49⁄64 ''

CUBIC CAPACITY MAXIMUM PAYLOAD TARE WEIGHT MAXIMUM GROSS 67.70 m3 28,860 kgs 3,640 kgs 32,500 kgs 2,390.8 Cft 63,625 Lbs 8,024 Lbs 71,650 Lbs

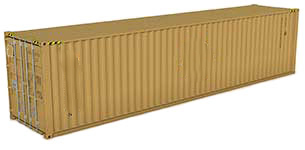

40' HIGH CUBE STEEL CONTAINER - 45 G1

INTERNAL DIMENSIONS DOOR L W H W H 12.032 m 2.352 m 2.698 m 2.340 m 2.585 m 39' 5 45⁄64 '' 7' 8 19⁄32 '' 8' 10 7⁄32 '' 7' 8 1⁄8 '' 8' 5 49⁄64 ''

CUBIC CAPACITY MAXIMUM PAYLOAD TARE WEIGHT MAXIMUM GROSS 76.40 m3 28,660 kgs 3,840 kgs 32,500 kgs 2,698 Cft 63,184 Lbs 8,465 Lbs 71,650 Lbs

OPEN TOP CONTAINERS

20' OPEN TOP STEEL CONTAINER - 22 U1

INTERNAL DIMENSIONS DOOR L W H W H 5,902 m 2.350 m 2.348 m 2.340 m 2.280 m 19' 4 23⁄64 '' 7' 8 33⁄64 '' 7' 8 7⁄16 '' 7' 8 1⁄8 '' 7' 5 49⁄64 ''

ROOF HEADER Btw Top Rails Btw Top Headers Btw Troughs Btw Stubs W L L W 2,252 m 5.674 m 5.378 m 1.640 m 7' 4 21⁄32 '' 18' 7 25⁄64 '' 17' 7 47⁄64 '' 5' 4 9⁄16 ''

Removable swing header capable of swinging 90 degs. to either side.

MAXIMUM PAYLOAD TARE WEIGHT MAXIMUM GROSS 28,180 Kgs 2,300 Kgs 30,480 Kgs 62,126 Lbs 5,070 Lbs 67,196 Lbs

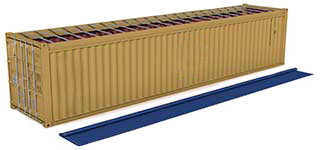

40' OPEN TOP STEEL CONTAINER - 42 U1

INTERNAL DIMENSIONS DOOR L W H W H 12.036 m 2.350 m 2.348 m 2.340 m 2.280 m 39' 5 55⁄64 '' 7' 8 33⁄64 '' 7' 8 7⁄16 '' 7' 8 1⁄8 '' 7' 5 49⁄64 ''

ROOF HEADER Btw Top Rails Btw Top Headers Btw Troughs Btw Stubs W L L W 2,232 m 11.798 m 11.512 m 1.940 m 17' 3 7⁄8 '' 38' 8 31⁄64 '' 37' 9 15⁄64 '' 6' 4 3⁄8 ''

Removable swing header capable of swinging 90 degs. to either side.

MAXIMUM PAYLOAD TARE WEIGHT MAXIMUM GROSS 26,680 Kgs 3,800 Kgs 30,480 Kgs 58,819 Lbs 8,377 Lbs 67,196 Lbs

FLAT RACK CONTAINERS

20' COLLAPSIBLE FLAT RACK - 22 P3

INTERNAL DIMENSIONS BTW HEADERS BTW CORNERS L W H L L W 5.96 m 2.40 m 2.29 m 5.85 m 5.42 m 2.06 m 19' 7'' 7' 10'' 7' 6'' 19' 2'' 17' 9'' 6' 9''

MAXIMUM PAYLOAD TARE WEIGHT MAXIMUM GROSS 37,000 Kgs 3,000 Kgs 40,000 Kgs 81,571 Lbs 6,613 Lbs 88,184 Lbs

40' COLLAPSIBLE FLAT RACK - 42 P3

INTERNAL DIMENSIONS BTW HEADERS BTW CORNERS L W H L L W 11.65 m 2.37 m 1.96 m 12.06 m 11.66 m 2.22 m 38' 3'' 7' 9'' 6' 5'' 39' 7'' 38' 3'' 7' 3''

MAXIMUM PAYLOAD TARE WEIGHT MAXIMUM GROSS 44,650 Kgs 5,250 Kgs 50,000 Kgs 98,436 Lbs 11,574 Lbs 110,231 Lbs

REEFER CONTAINERS

20' REEFER STEEL CONTAINER - 22 R1

INTERNAL DIMENSIONS DOOR L W H W H 5.456 m 2.294 m 2.16 m 2.290 m 2.264 m 17' 10 51⁄64 '' 7' 6 5⁄16 '' 7' 1 3⁄64 '' 7' 6 5⁄32 '' 7' 5 9⁄64 ''

NOTE: Inside height is to maxi stowage height.

CUBIC CAPACITY MAXIMUM PAYLOAD TARE WEIGHT MAXIMUM GROSS 28.40 m3 27,540 kgs 2,940 kgs 30,480 kgs 1,002.9 Cft 60,715 Lbs 6,481 Lbs 67,196 Lbs

40' HIGH CUBE REEFER STEEL CONTAINER - 45 R1

INTERNAL DIMENSIONS DOOR L W H W H 11.59 m 2.288 m 2.40 m 2.290 m 2.569 m 38' 0 19⁄64 '' 7' 6 5⁄64 '' 7' 10 31⁄64 '' 7' 6 5⁄32 '' 8' 5 9⁄64 ''

NOTE: Inside height is to maxi stowage height.

CUBIC CAPACITY MAXIMUM PAYLOAD TARE WEIGHT MAXIMUM GROSS 67.50 m3 29,400 kgs 4,600 kgs 34,000 kgs 2,383.7 Cft 64,815 Lbs 10,141 Lbs 74,957 Lbs
